LED Medical HeadLight

EH-100 provides daylight-like color for confident visualization and tissue differentiation—without external cables. An integrated polymer Li-ion battery keeps the headset balanced and mobile, while 6 brightness steps, adjustable spot size, and an articulated tube arm let you aim fast and repeatably.

Model
EH-100
Product
Headlight
Contact
Description

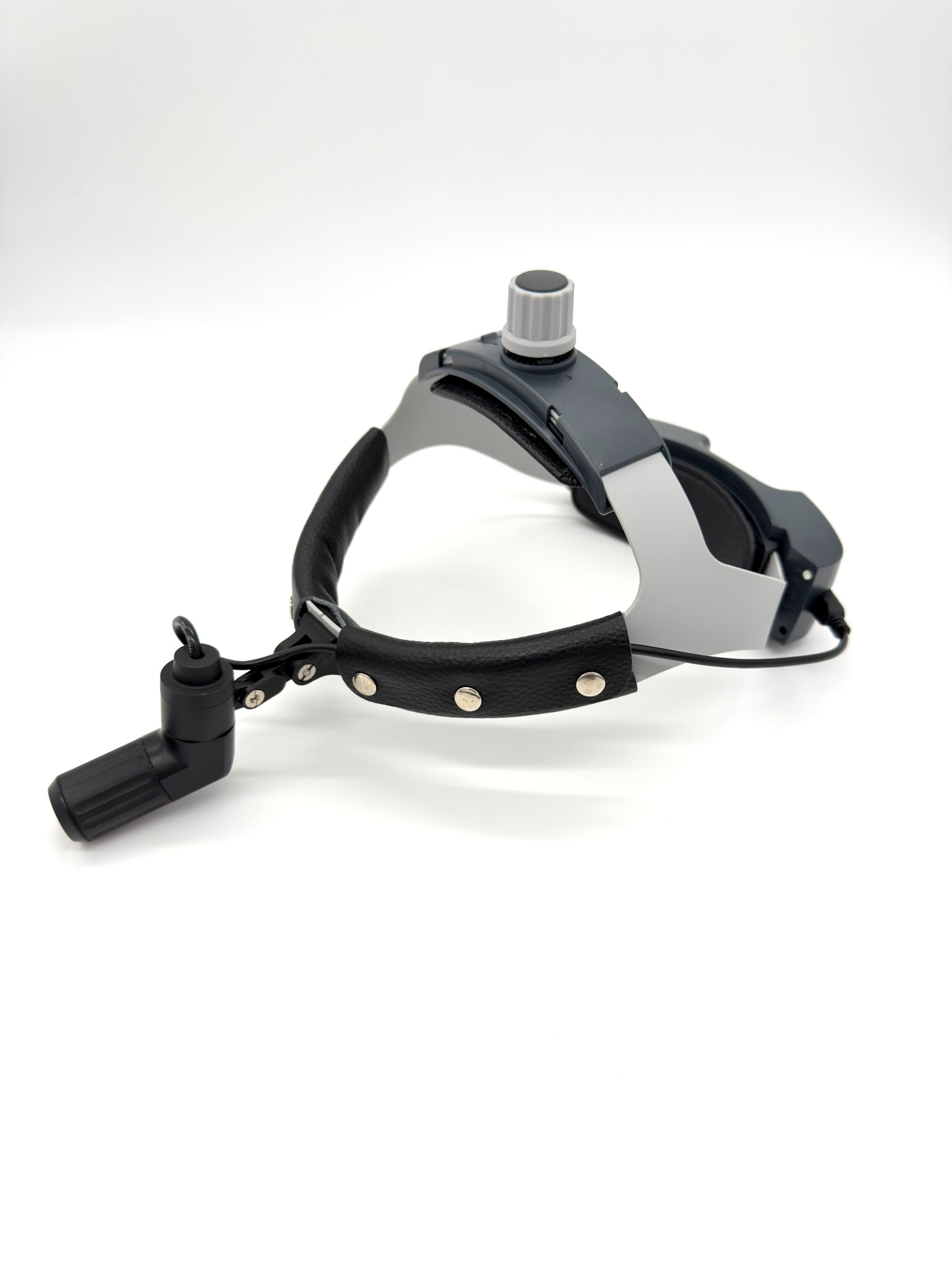

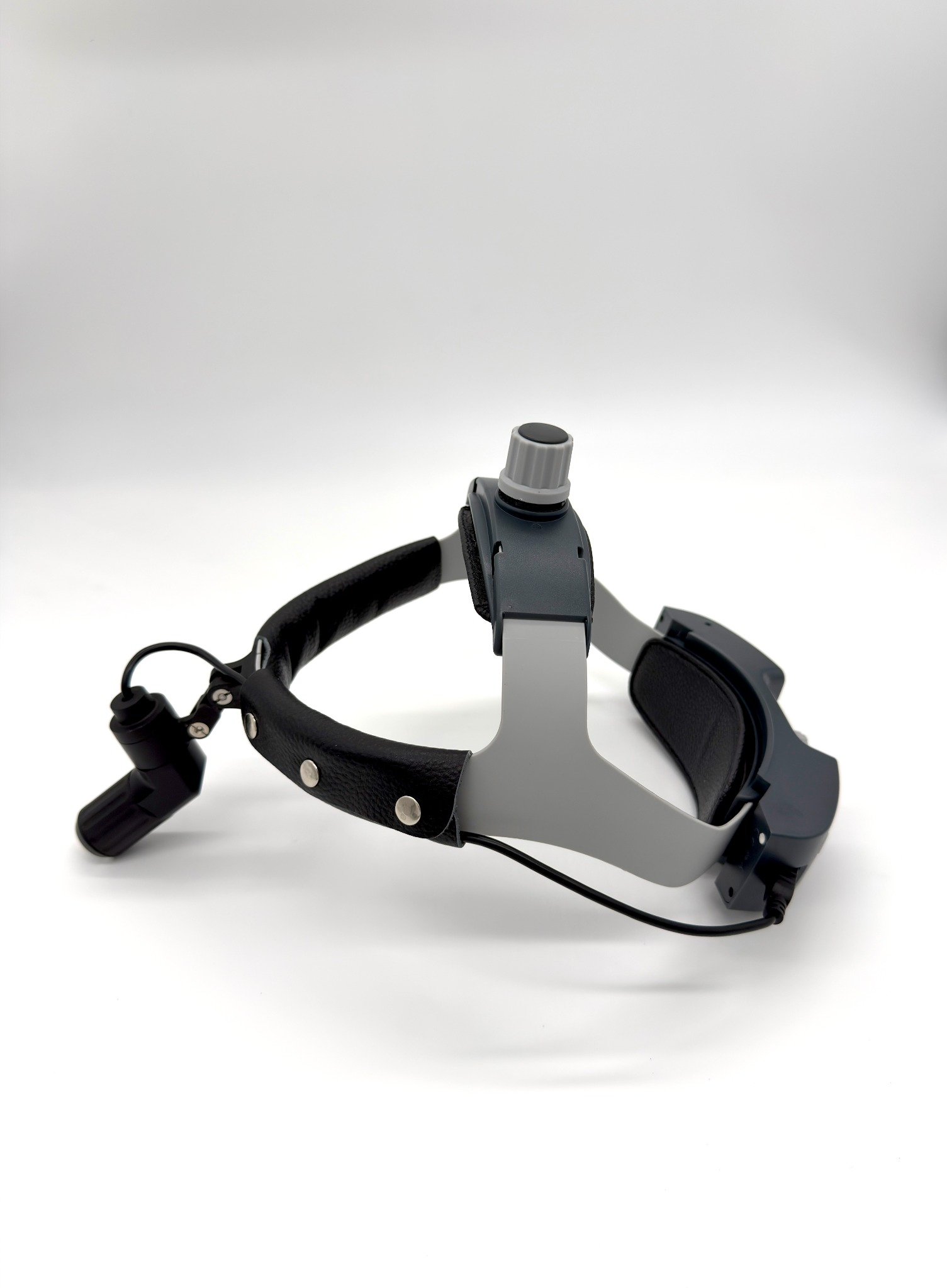

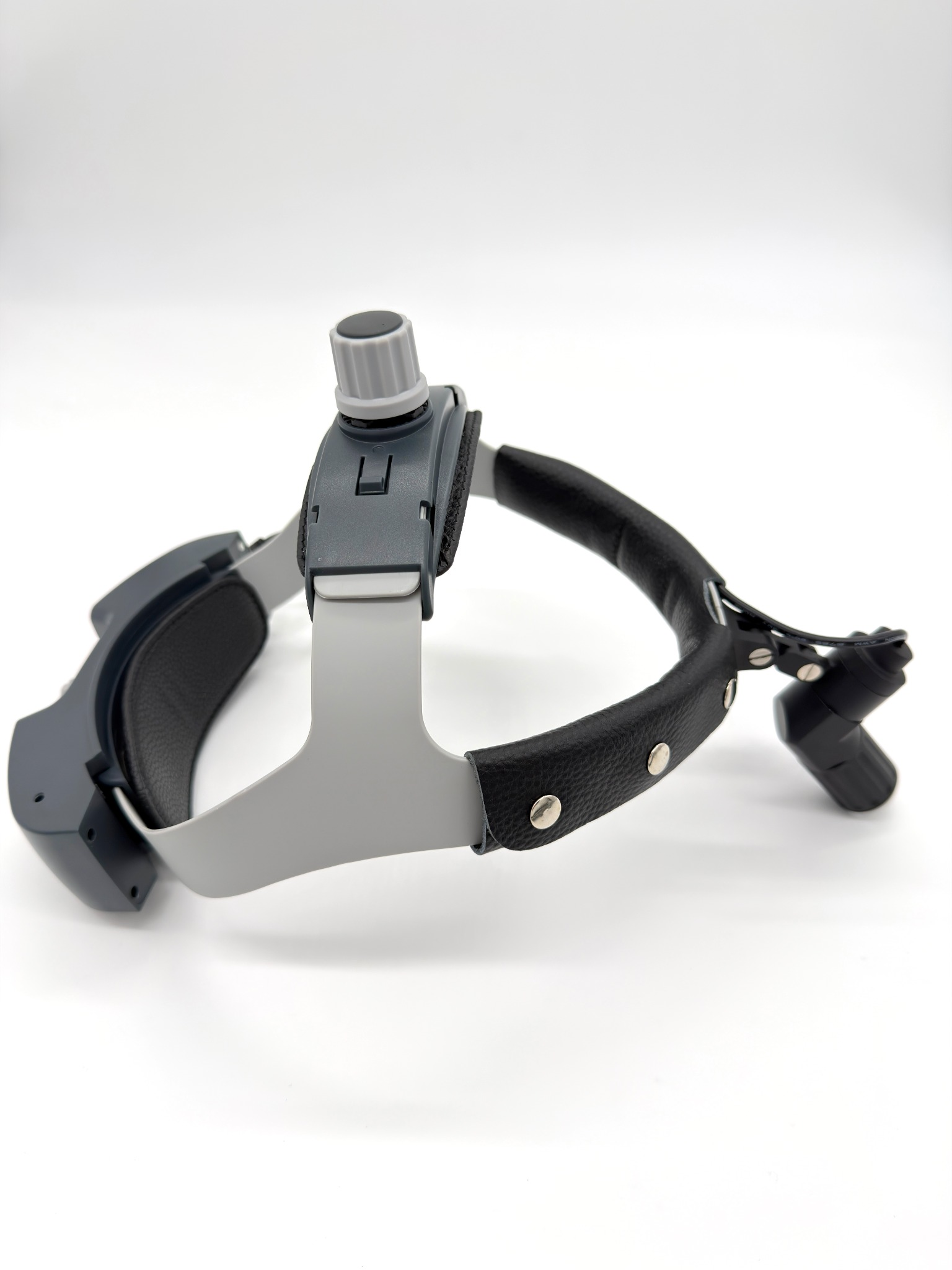

The EH-100 is a self-contained medical headlight that delivers bright, clear illumination without externalcables. Its high-efficiency LED light engine provides natural color rendering for clear visualization.The integrated battery supports a compact and mobile setup. Featuring six brightness levels, an adjustablespot size, and a flexible tube arm, the beam aligns with your line of sight and holds its position during use.

Key benefits

  • Natural color rendering for clear visualization
  • Cable-free operation with integrated Li-ion polymer battery
  • Six-step brightness control for fast and repeatable setups

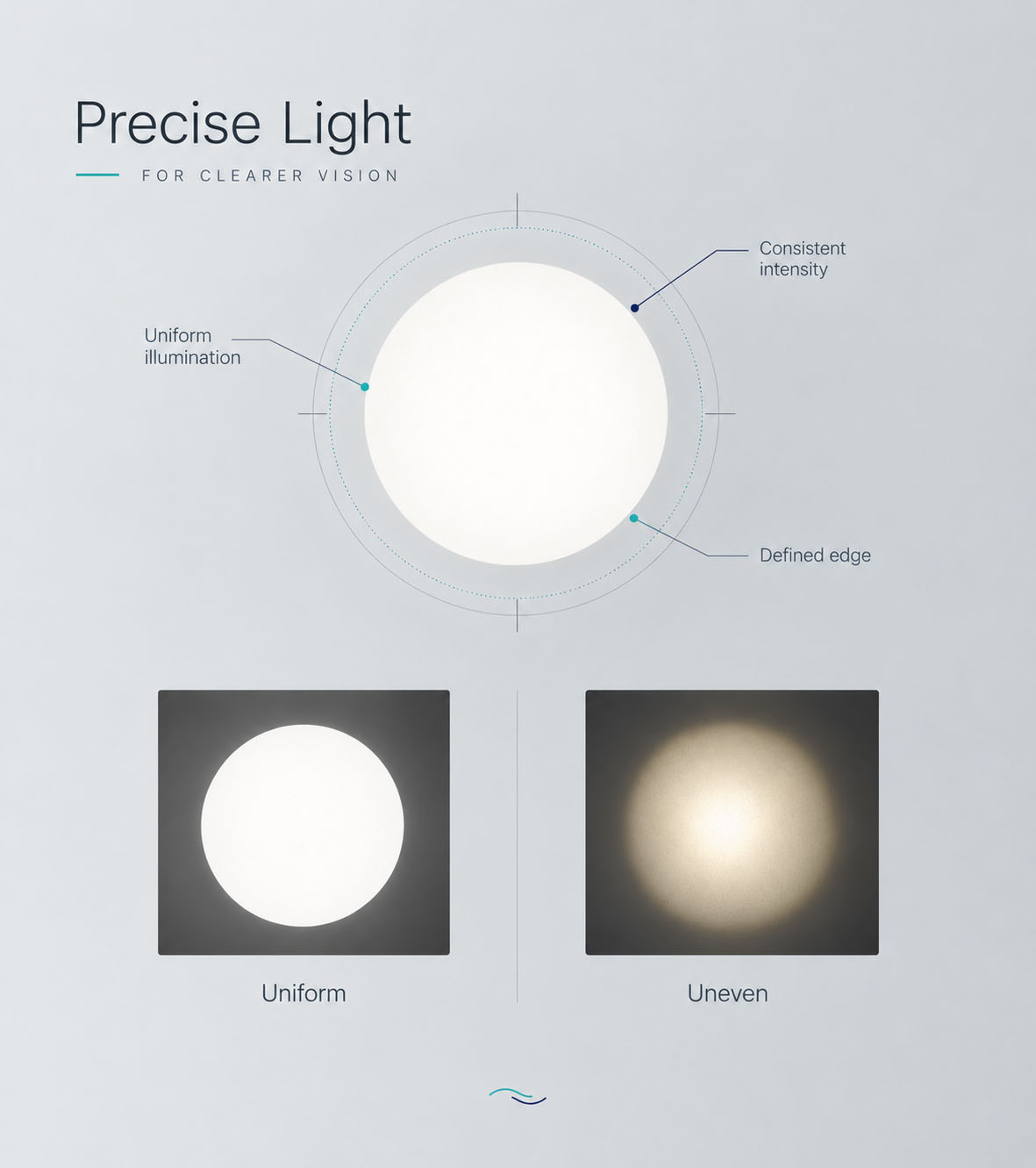

  • Adjustable spot size and beam angle for precise positioning
  • Long-life LED designed for up to 50,000 hours service life

Clinical Applications

Neurosurgery, Spine, Cardiac, Ophthalmology, Dermatology, ENT / Otorhinolaryngology, Orthopedics,General Surgery, Gynecology, First Aid / Outdoor Rescue / Field & Transport, and more.

Technical Specifications
Feature Specification
Illumination intensity 20,000 lx @ 200 mm working distance
Color temperature 6,000 K (daylight)
Spot size range 15mm-130mm (depending on working distance)
Spot size adjustment Adjustable via lamp base rotation
Beam angle Adjustable via flexible tube arm
Power input (charger) 100–240 V AC
Operating time 4-8 hours per full charge (brightness dependent)
Battery Integrated polymer Li-ion; ≥ 500 charge–discharge cycles
LED lifetime Up to 50,000 hours
Energy efficiency Approx. 1/100 the energy of traditional fiber headlights

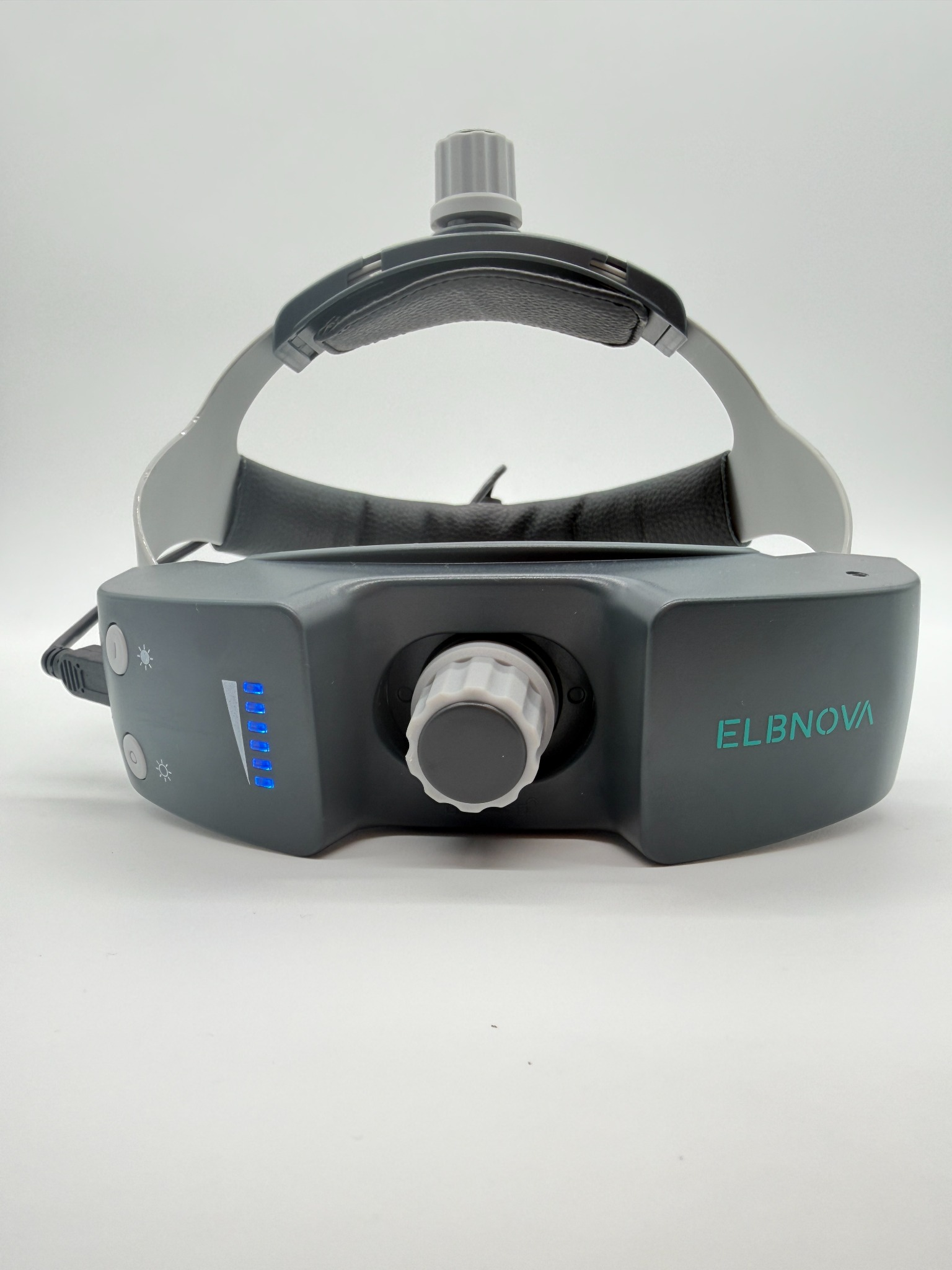

Controls Upper button: power/on + increase; Lower button: power/off + decrease
Status indication Six LEDs display brightness; startup flashes indicate battery level
FAQ
Is the EH-100 headlight cable-free?

Yes. The light module is powered by an integrated battery, so no external cable is needed.

How long does the battery run?

Up to 3+ hours, depending on brightness level.

Is the spot size adjustable?

Yes. The spot size is adjustable from 12 to 80 mm.
